Hyundai R145L Quarry Smart Plus Excavator
Gross Power
105 HP (78 kW) @ 2,200 rpm
Operating Weight
15,040 kg
Bucket Capacity
0.65 m³ HD
Description :

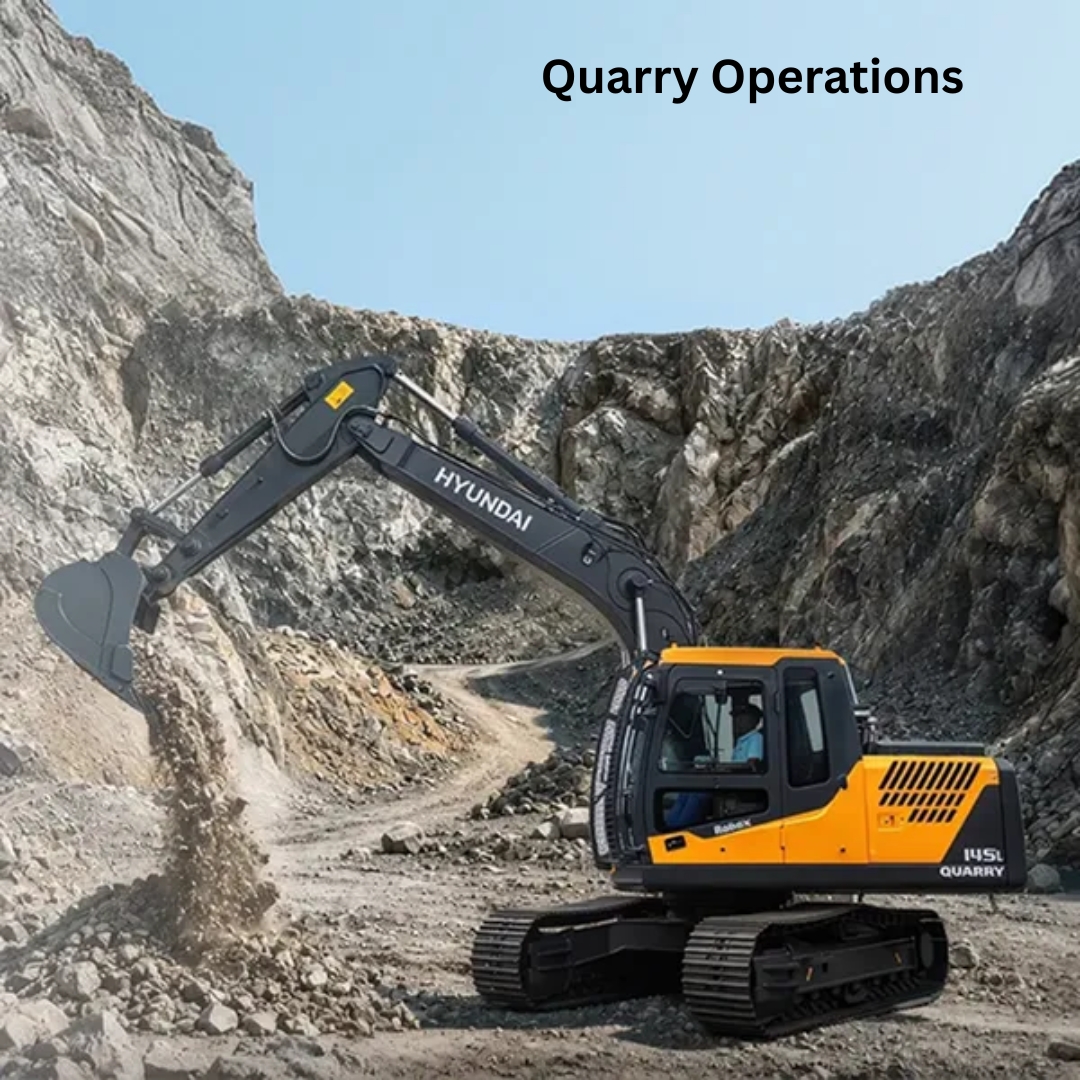

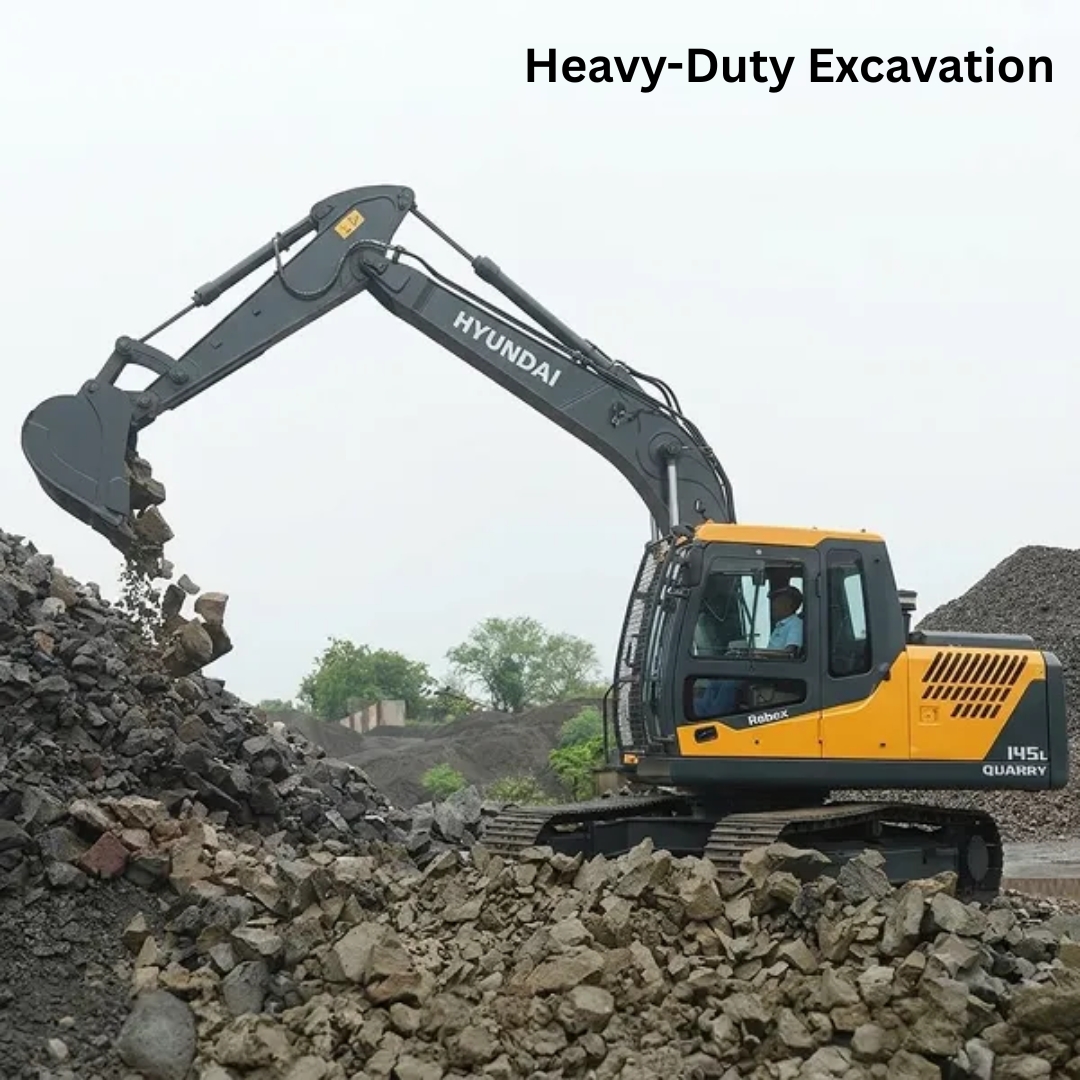

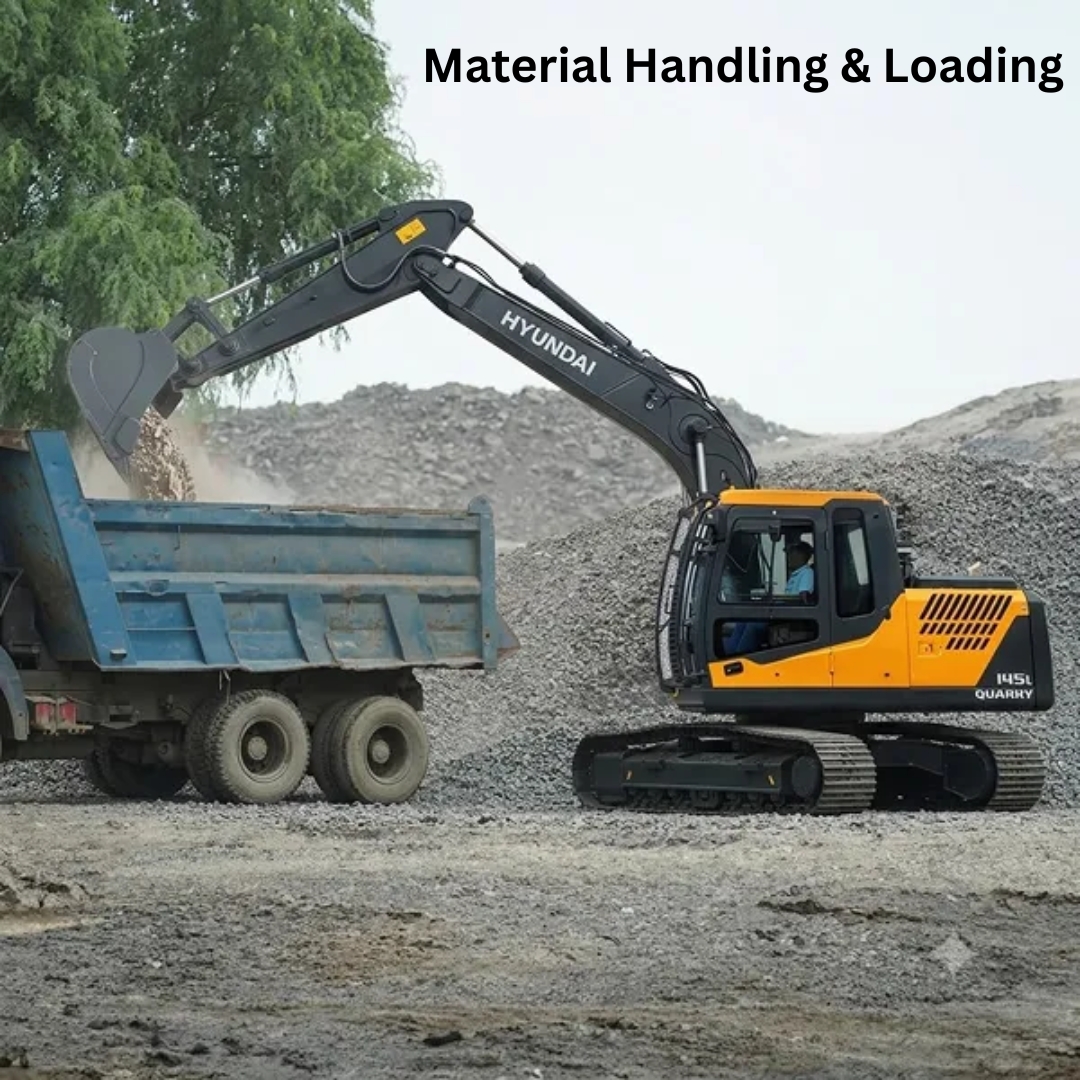

The Hyundai R145L Quarry Smart Plus excavator is designed for demanding quarry operations, heavy-duty excavation, and material handling. Powered by a 105 HP engine, it delivers reliable digging performance and efficient operation for challenging working environments. Its heavy-duty 0.65 m³ bucket and reinforced structure make it suitable for tough excavation and loading applications.
Equipped with advanced hydraulic technology, multiple operating modes, and fuel-efficiency features, the R145L Quarry Smart Plus supports productive work cycles while helping optimise operating costs. The durable undercarriage, heavy-duty boom and arm, and intelligent monitoring system further enhance its suitability for demanding job sites. With a comfortable air-conditioned cabin and operator-focused controls, it combines performance, durability, and convenience for construction and quarry businesses.
Features
Explore the features of the Hyundai R145L Quarry Smart Plus, engineered for demanding quarry operations, heavy-duty excavation, and efficient material handling.
Powerful 105 HP Engine
- Four-cylinder, turbocharged, water-cooled diesel engine.
- Gross power of 105 HP (78 kW) at 2,200 rpm.
- Designed to handle demanding excavation and quarry workloads.
- Multiple operating modes to suit different job requirements.
Advanced Hydraulic System
- Electro-hydraulic controls support responsive machine operation.
- Hydraulic flow summation helps coordinate working movements.
- Swing priority and regeneration systems support efficient work cycles.
- Auto-deceleration helps reduce unnecessary engine speed during idle periods.
Heavy-Duty Boom, Arm & Bucket
- 4.6 m heavy-duty mono boom and 2.1 m heavy-duty arm.
- 0.65 m³ heavy-duty bucket for demanding excavation work.
- Reinforced lower frame and robust undercarriage components.
- Track rail guards and 500 mm track shoes support demanding site conditions.
Intelligent Display & Hi-Track
- 7-inch intelligent display provides key machine operating information.
- Monitoring of engine parameters, fuel level, and temperature readings.
- Self-diagnostic functions help identify machine alerts.
- Hi-Track remote management supports machine monitoring and maintenance planning.
Comfortable Air-Conditioned Cabin
- Spacious cabin with an air-conditioning system.
- Adjustable suspension seat for operator comfort.
- Conveniently positioned controls and enhanced visibility.
- Cabin lighting, radio with USB connectivity, and mobile charging point.
Integrated Safety Features
- Auto engine overheat prevention system.
- Boom and arm holding systems.
- Anti-slip access features and cabin front protector.
- Battery master switch and anti-restart function.
Strong Digging Capability
- ISO bucket digging force of 10,290 kgf (101 kN).
- ISO arm crowd force of 7,510 kgf (73.7 kN).
- Maximum digging reach of 8,075 mm.
- Maximum digging depth of 5,108 mm.
Simplified Maintenance
- Service-friendly component layout for routine maintenance.
- Diagnostic information supports timely inspection and servicing.
- Cooling system designed to support temperature management.
- Remote monitoring capabilities assist with machine management.
